My HDMI matrix answers at 9600, and returns a status line its manual never mentions

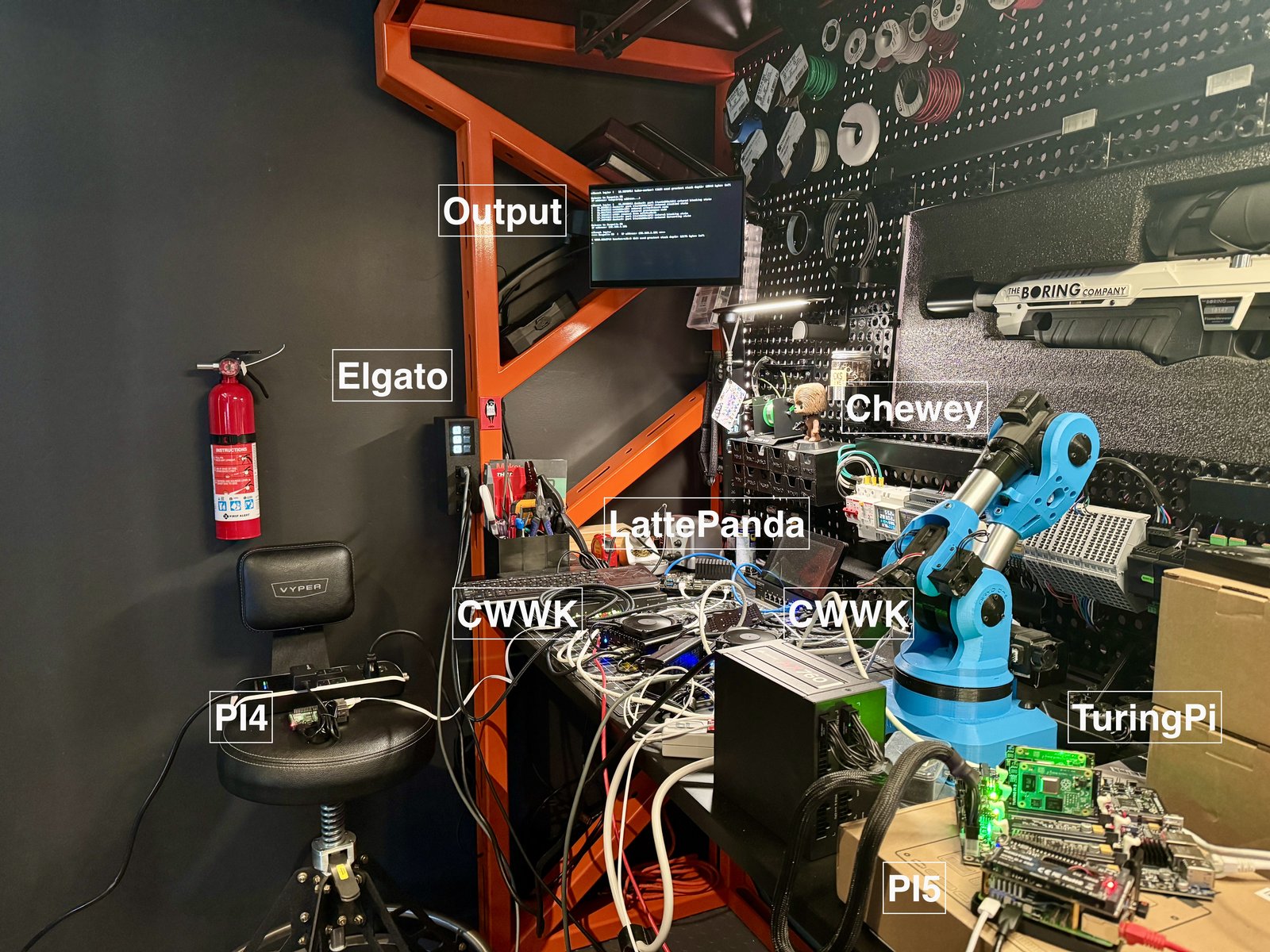

Ok, a little bit of fun for this devlog. As I’ve said before, working with Rasputin takes a lot of hardware of different makes, models, and architectures. Some of the hardware can, at times, be a little cantankerous to bring up. Working with all the various nodes was requiring me to constantly switch back and forth between HDMI inputs and the bench monitor. I really needed an easy way to swap HDMI inputs to the monitor and to manage the cables.

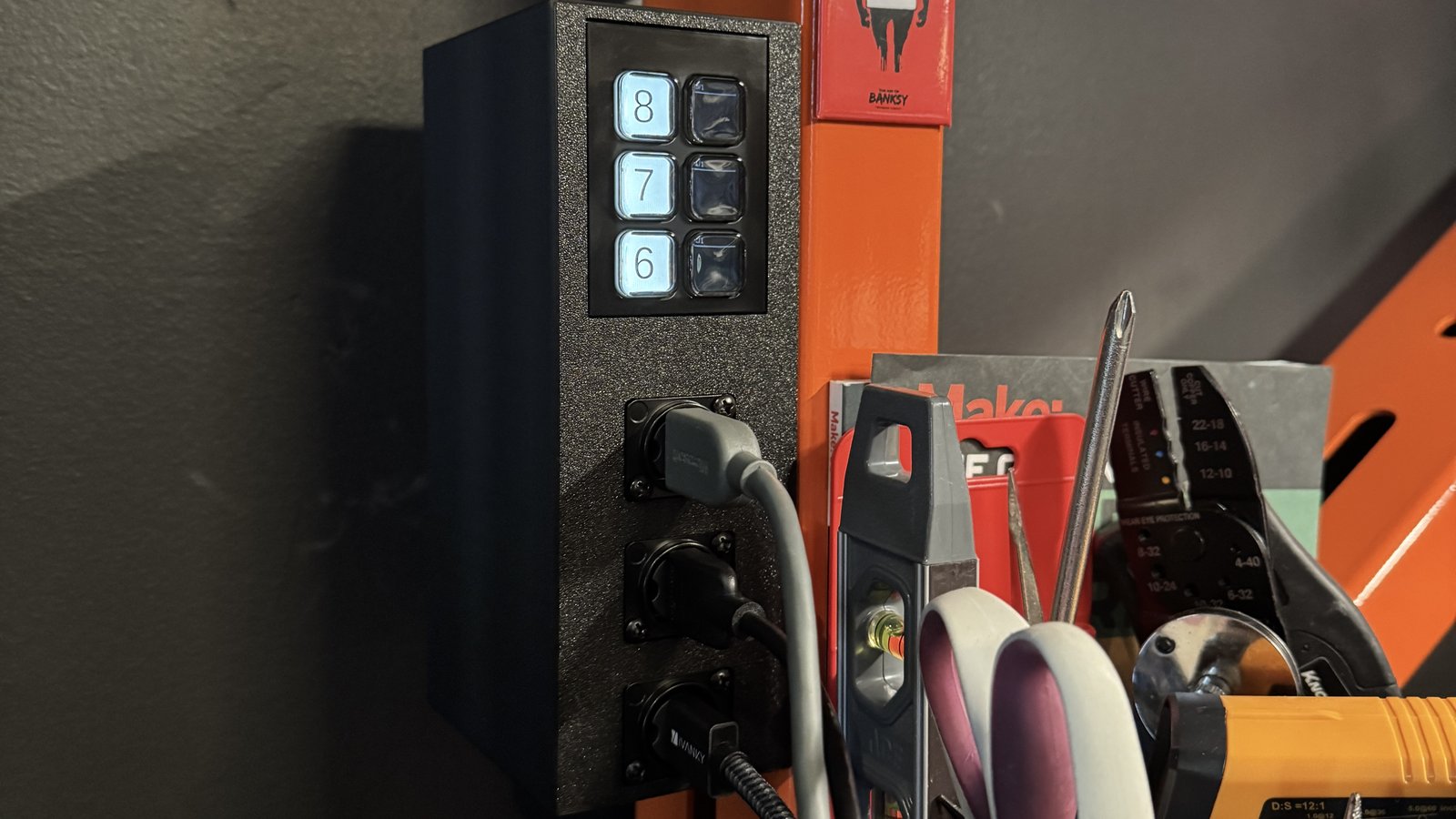

I already had an 8x8 HDMI matrix switcher, but I needed a way to get the “switching” buttons over to the bench and then, of course, get all the feeds and the monitor over to the matrix switch sitting in the rack. Time for some overengineering!

Bill of Materials

• MT-VIKI MT-HD0808 8x8 Matrix Switcher
• Elgato Stream Deck Module
• USB to RS232 FTDI Adapter
• Neutrik HDMI 2.0 Feed Through Adapter D-Shape Housing IP65 (Black Chromium)
• 4x30’ HDMI Cables
• About 600g of PLA (took four prints to get the spacing right)
• Some space on the Pi 5 that was already driving the rack monitor for Rasputin
• Bitfocus Companion

Overview

At a high level:

Elgato key press → dock (USB-C) → TCP/5343 → Companion on the Pi → HTTP on localhost:8800 → matrixd → RS232 @ 9600 → matrix

Step by step:

1. Key press on the Stream Deck 6 Module → USB-C to the Network Dock.
2. Dock → Companion over TCP 5343. Note the direction: Companion dialed out to the dock at 192.168.197.227 and holds that session open; the press travels back up it. Same VLAN, so this never touches the WatchGuard.
3. Companion (Pi 5, 192.168.197.225) runs the button’s action — a Generic HTTP GET.
4. HTTP to 127.0.0.1:8800 — GET /switch?in=7&out=8. Loopback, same Pi, never on the wire.
5. matrixd validates the input/output range, then queues the command on its single worker thread so two presses can’t interleave.
6. RS232 out the FTDI adapter at 9600 8N1: the literal bytes 7X8.
7. Matrix switches output 8 and replies SWS 1 2 5 4 3 4 4 7 — the whole crosspoint table.
8. matrixd parses that, confirms output 8 really is on input 7, updates its cache, and returns 200 with JSON to Companion.

As usual, Claude did all the coding here using Python and we registered the HTTP server as a service. The basic coding was quick. Debugging the serial port was not… …that took most of the afternoon. The protocol documented in the manual was not at all what the device was doing. Honestly, not surprising given the price point here.

What the port actually does

The manual for this matrix family specifies 115200 8N1 and documents no response at all — send the command, hope. The unit on my bench runs at 9600, and every routing command comes back with the entire crosspoint table:

6X8.   →   SWS 1 2 5 4 3 4 4 6

Position N is the input feeding output N. So 6X8. comes back reporting that output 8 is now on input 6, along with the state of the other seven. The manual is correct on command syntax — [in]X[out]., 0X[out]. to blank an output, Save[1-9]. and Recall[1-9]. all work exactly as printed — it is silent on what comes back.

That echo is what lets the daemon verify a command instead of assuming it. A command that goes out cleanly but doesn’t take is otherwise invisible until you look at the monitor. What does not exist is a read-only query: Status., SWS., Read. and ?. all return silence, so there is no way to ask the matrix what it is doing without telling it to do something.

The fix

matrixd is a dependency-free stdlib-Python daemon at /usr/local/bin/matrixd, and it is the only process that opens the serial port. These matrices take one client at a time, so a single owner is what lets a second consumer — a script, a curl at 2am — share it safely. It serializes every command through one worker thread, parses the SWS echo, and checks the commanded output actually changed before reporting success. Buttons call GET /switch?in=6&out=8; GET /state returns the whole table as JSON.

Two things needed working around on the way, both specific to running Bitfocus Companion on a Pi that already has a job:

• Companion 5.0.3 requires a --machine-id argument that companion-pi’s config-tool has no schema entry for, so it cannot supply it and Companion exits immediately with Error: Missing machineId. Adding the flag to ExecStart does not work either — upstream’s launch.sh runs source <(config-tool generate), and the sourced set -- replaces the positional parameters. A systemd drop-in pointing at a wrapper that appends the flag after that line fixes it, and lives outside the git clone so companion-update won’t remove it.
• /dev/ttyUSB0 on this Pi is group plugdev, not dialout. With DynamicUser=yes the service inherits neither that nor the console ACL, and PrivateDevices=yes hides the device entirely. DevicePolicy=closed plus DeviceAllow=char-ttyUSB rw keeps the containment without breaking the port.

One more, less technical: I scanned the dock for open ports from my workstation and got nothing back, which I reported to myself as a finding. The scan crossed the site firewall, whose flood protection eats wide scans — a trap already written down in my own wiki. The same scan run from the Pi on the same VLAN found three open ports immediately.

There is no read-only query on this firmware, so matrixd only knows the state it last set. Touch the front panel or the IR remote and the keys are wrong until the next press. I’m leaving that alone for now — with one surface and one person at the bench it costs nothing. If I add a second surface, or start switching these outputs from anything other than the Stream Deck, I’ll look at whether re-asserting a known route on a timer is worth the side effect it carries.

A fun side project and a little bit of a break from Rasputin code. ;)
